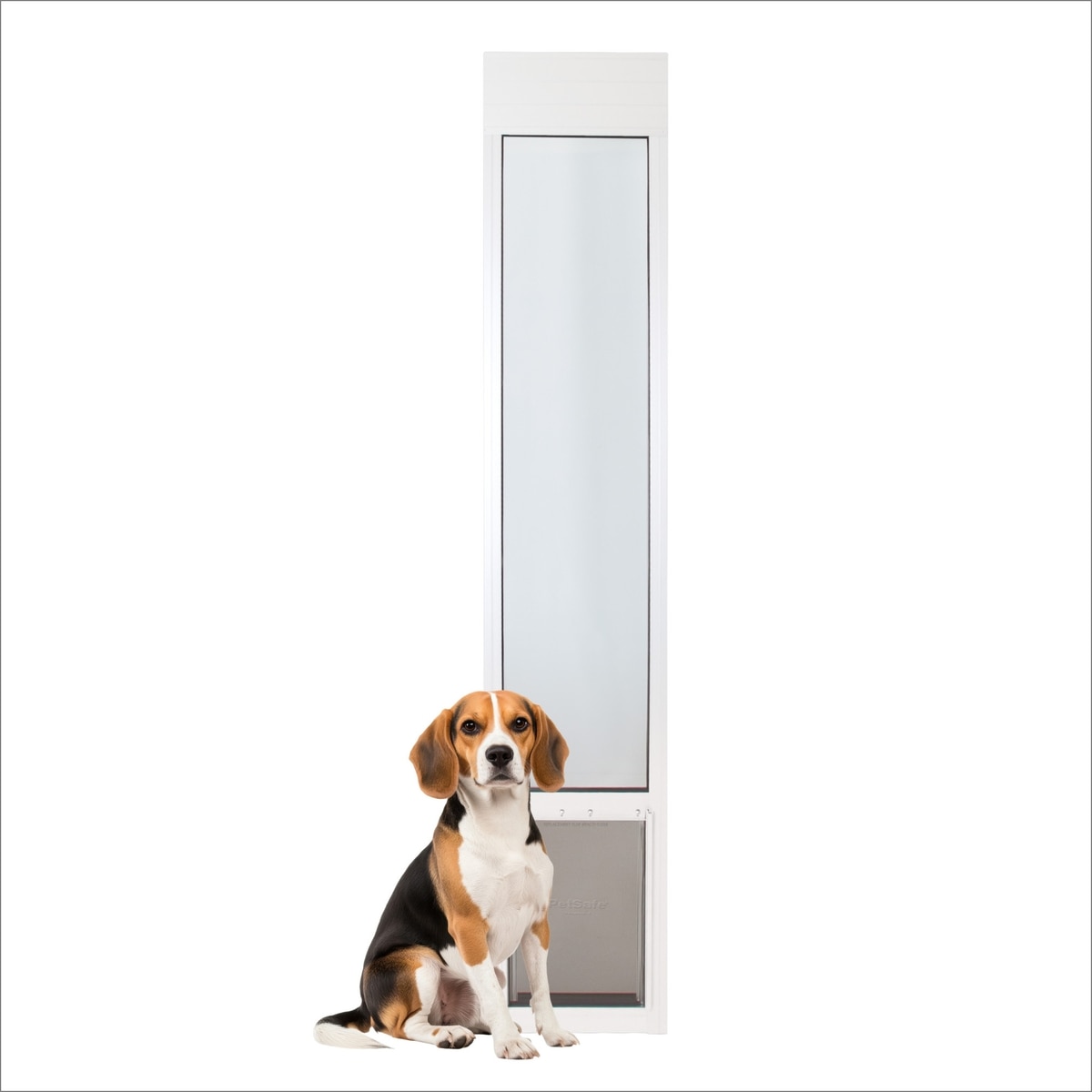

PetSafe 96-in Sliding Glass Pet Door, Medium

Installation Step 1: Measure Your Door Frame

• Before purchasing any Freedom® Patio Panel Pet Door, you need to determine the height of your sliding glass door frame opening. Measure from the highest point in the upper door track to the lowest point in the lower door track.

  Installation Step 2: Install the Patio Panel

• If you purchased a 96" Patio Panel, first assemble the bottom section to the top section before proceeding with the installation.

• Remove the 4 factory installed screws from the sides of the connection bars on the bottom door section.

• Align and slide the connection bars on the bottom section into the top section.

• Reinstall and tighten the 4 screws through the 4 pre-drilled holes on the sides of the top door section into the connection bars.

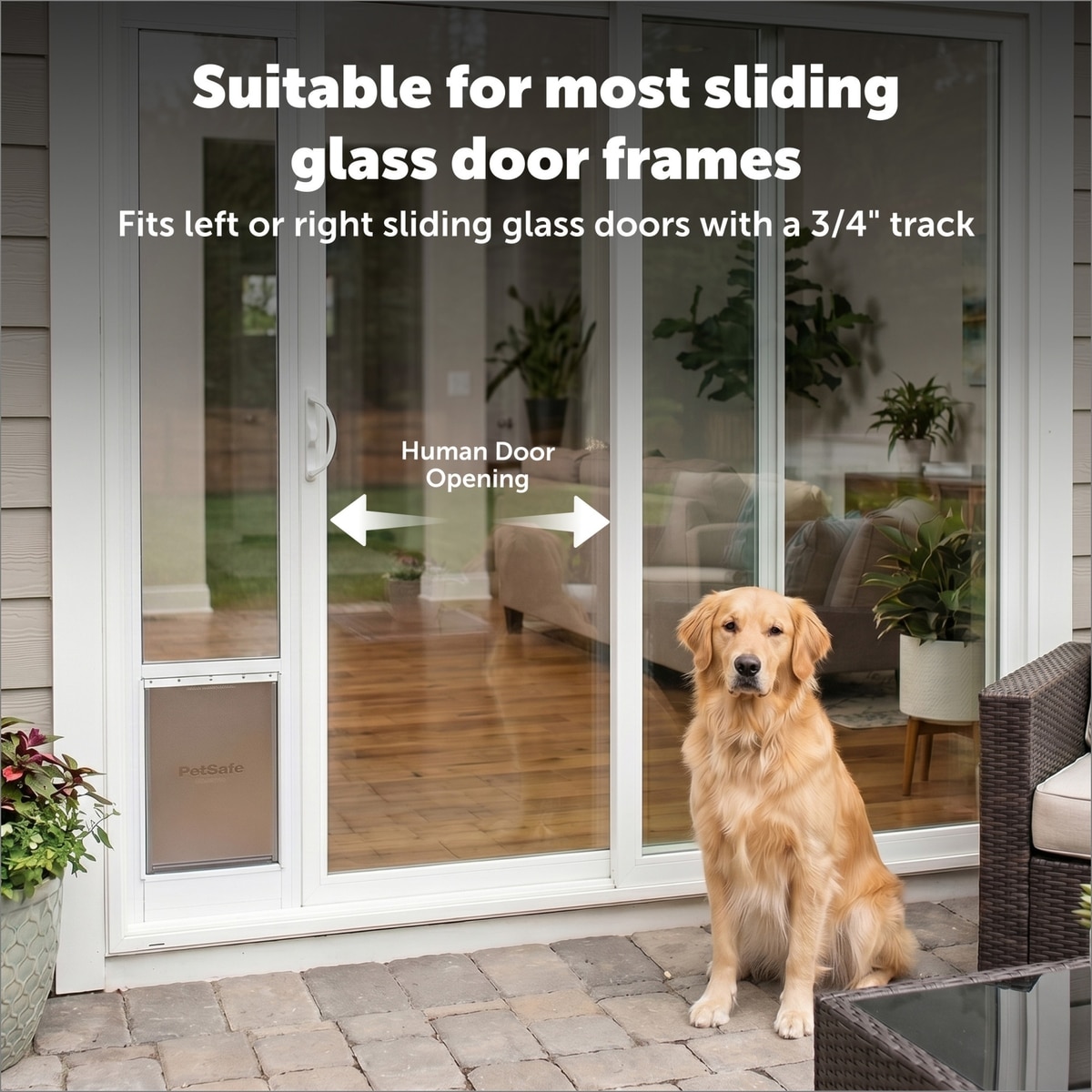

• The Freedom Patio Panel Pet Door inserts into the opening in your sliding glass door against the doorjamb. Your sliding door will close against the Patio Panel.

• With the sliding glass door open, insert the top of the Patio Panel with the height adjuster into the upper door track on the interior side of the sliding glass door.

• Lift up and position the bottom of the Patio Panel into the lower door track on the interior side of the sliding glass door. Ensure the side of the Patio Panel showing the flap screw heads is on the interior side of your sliding glass door.

• Move the Patio Panel against the doorjamb. The Patio Panel should fit flush against the doorjamb without any gaps. Make sure the height adjuster is fully extended and not tilted to one side. Ensure you are satisfied with the fit of the Patio Panel before drilling.

Installation Step 3: Attach the Patio Panel

• Slide the Patio Panel out slightly from the door jamb to show the pre-drilled holes in the height adjuster.

• Drill 7/64” (2.5 mm) holes through the two pre-drilled holes on the interior side of the height adjuster.

• Secure the height adjuster to the Patio Panel using two 5/8” sheet metal screws.

• Slide the Patio Panel back against the door jamb making sure it's flush without any gaps.

• To install the Patio Panel into an exposed sliding glass door frame, find the Patio Panel center at the top and mark on the sliding glass door frame.

• Measure 12” from the top down along the side of the sliding glass door frame and mark.

• Measure 1” above the pet door in the Patio Panel and mark on the sliding glass door frame.

• Measure the center of the Patio Panel at the bottom and mark on the sliding glass door frame.

• Drill 9/64” (3.5 mm) clearance holes through your sliding glass door frame only at the locations you just marked. Don't drill into the patio panel at this time.

• Before drilling into the Patio Panel, it's important not to drill inside the Patio Panel rib lines where the glass is located. Only drill into the outer edge section. You may need to slide the Patio panel over slightly to correct before drilling.

Installation Step 4: Install the Lock

• Close the sliding glass door tightly against the Patio Panel and decide the most convenient height to place the door latch.

• Using the template provided, align a vertical center line on the template with the door line between the sliding glass door and the Patio Panel. Keep the latch side of the template to the right.

• Tape the template in place and mark the locations for the mounting screws. Remove the template when the screw marks are in place.

• Drill four 7/64” (2.5 mm) holes. Don't drill completely through to the other side of the sliding glass door or Patio Panel.

• Secure the latch and keeper with four 3/4” flat head sheet metal screws. Be careful not to overtighten.

Installation Step 5: Install Glass Sweep

• The glass sweep should be installed on the back edge of the sliding glass door to form a seal between the sliding glass door and the stationary glass door.

• Close the sliding glass door against the Patio Panel. Clean and dry the back edge of the sliding glass door.

• Position the glass sweep at the top glass edge with the flexible part touching the glass of the stationary door.

• Carefully peel away the backing and press the glass sweep in place as you move down to the bottom of the door. Trim any excess with scissors.

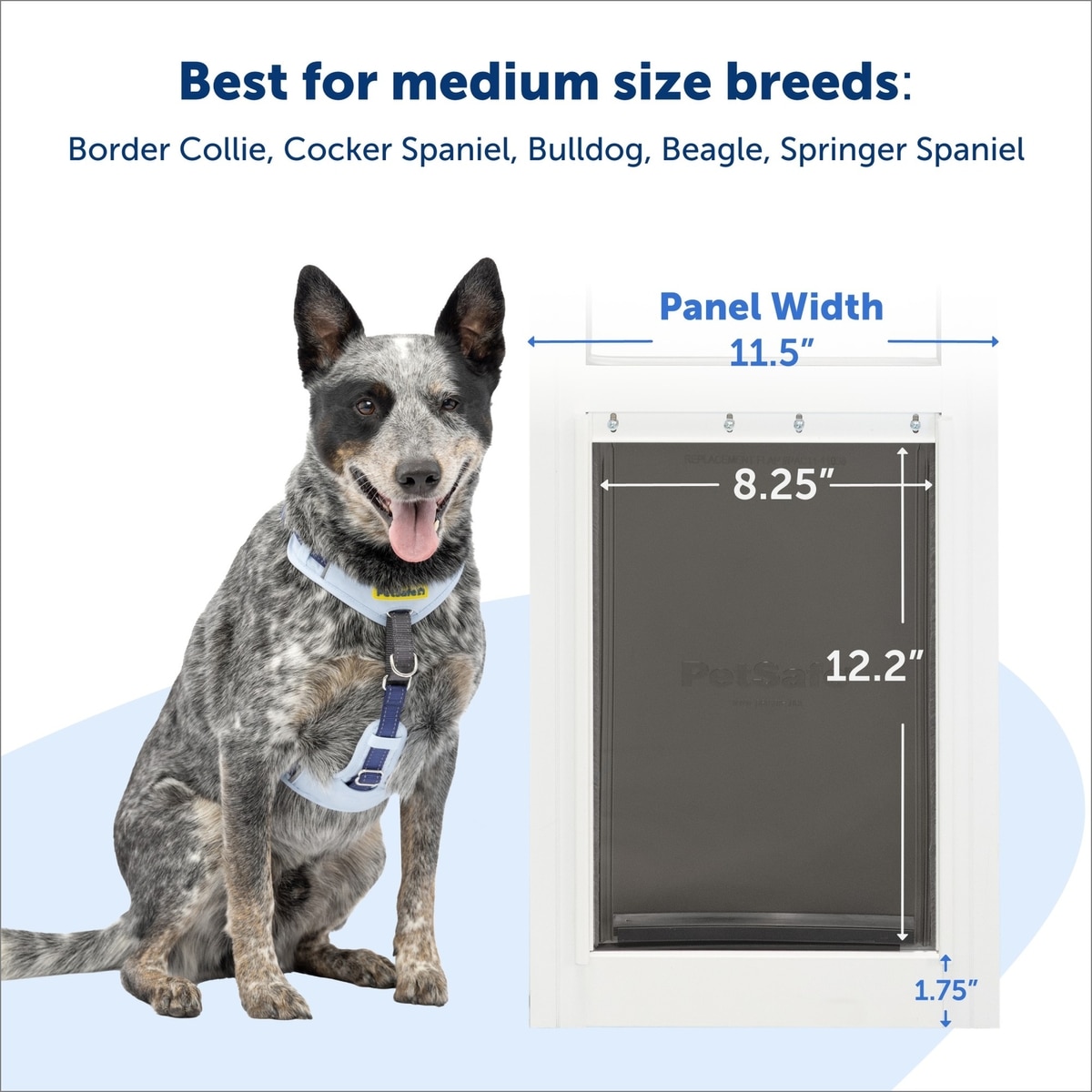

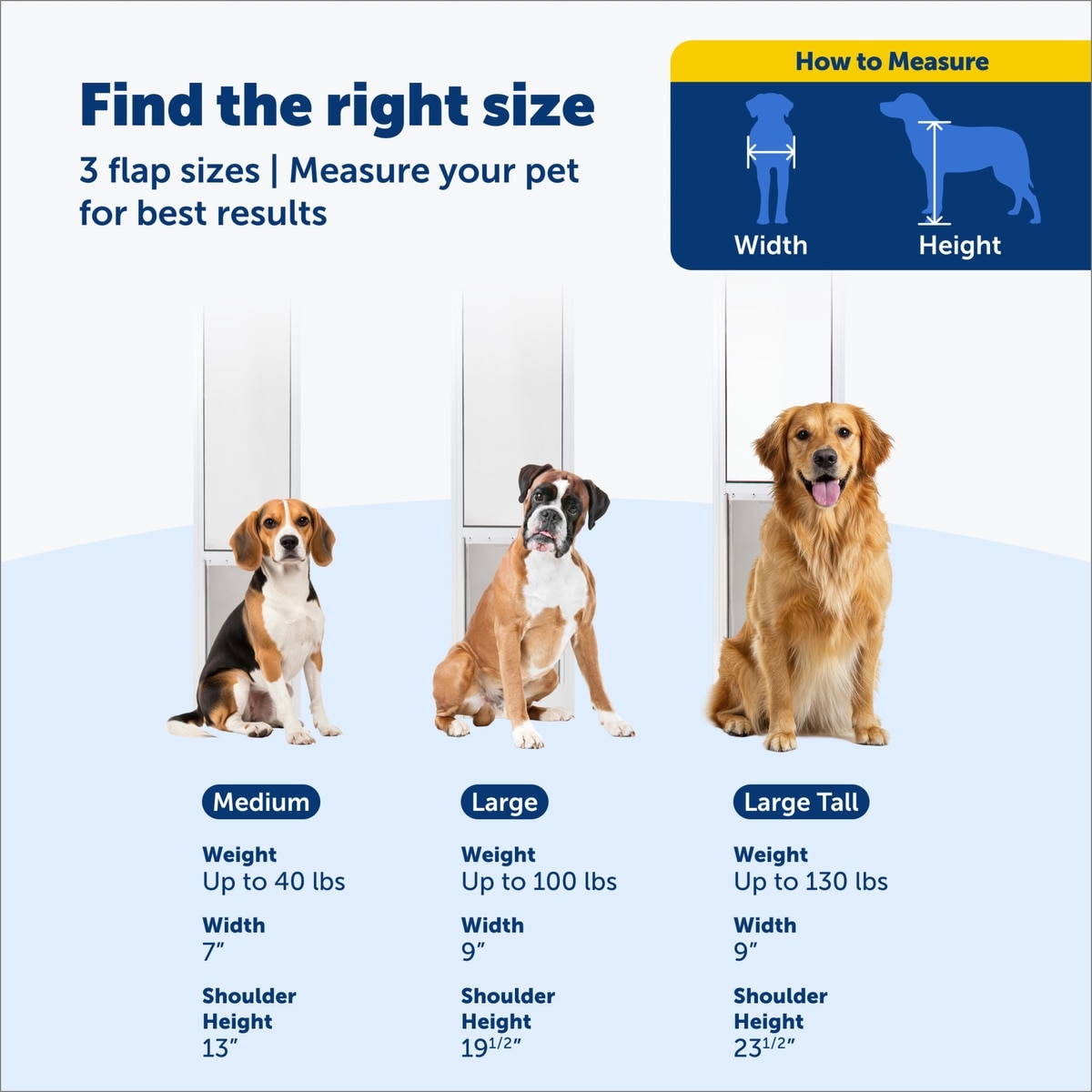

• The main difference in sizes is the pet door opening.

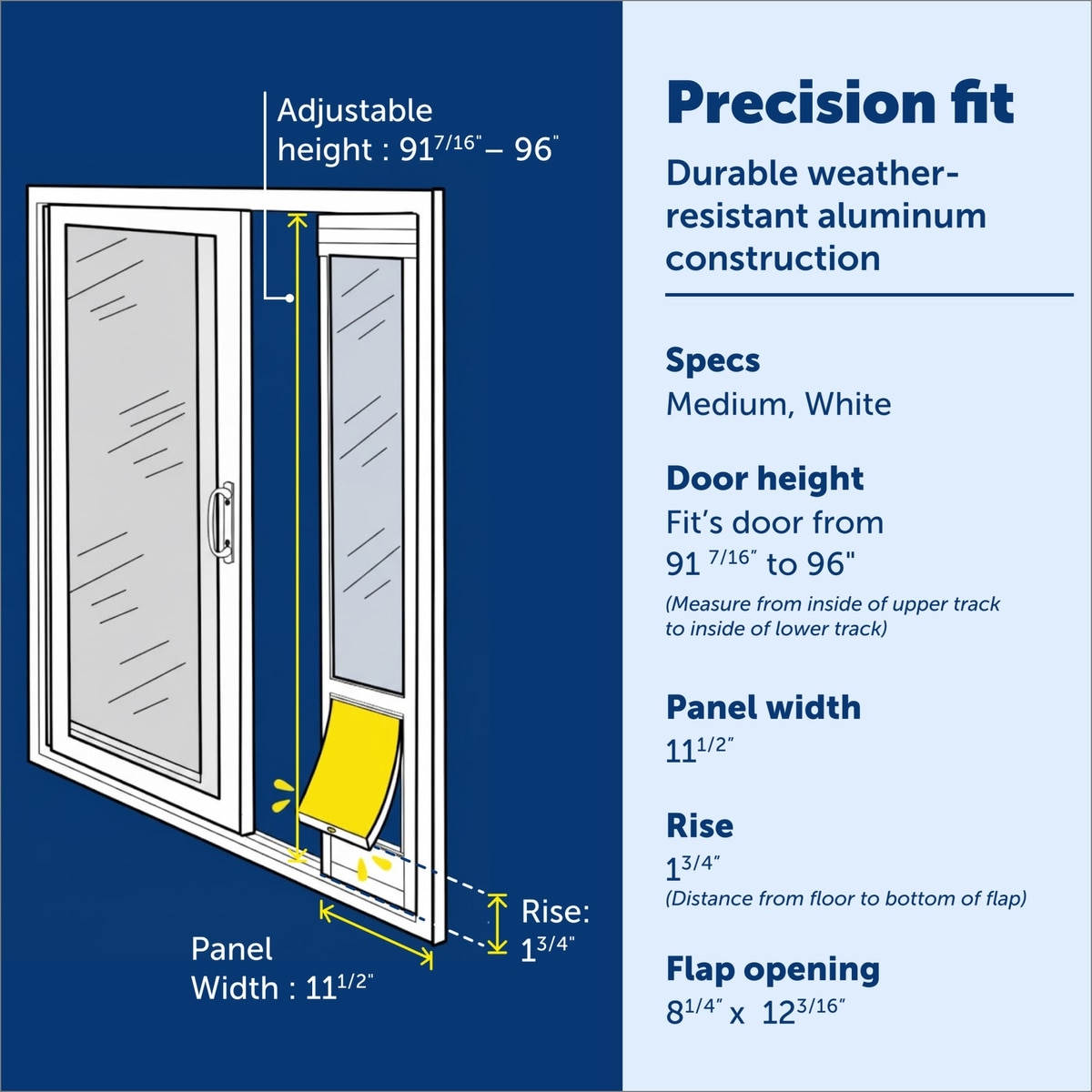

  • Measure the height of your sliding glass door. Our door inserts fit patio doors from 91 - 96 inches tall.

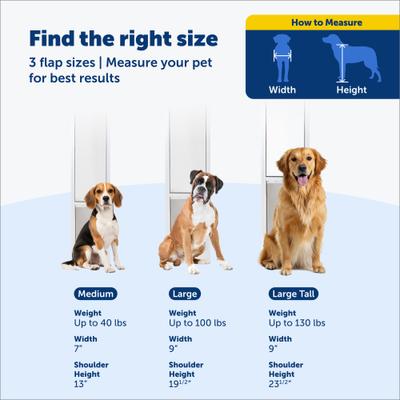

  • Dogs and cats can use sliding door inserts. Measure each pet who will use the door and check the weight and height recommendations for the pet door.
• Measure the widest part of your pet (chest or hips) and add 2 inches.
• Measure your pet from the top of the shoulders to the bottom of the chest or belly, whichever length is greater and add 2 inches.
• Measure your pet from the top of the shoulders to the floor and add 2 inches.
